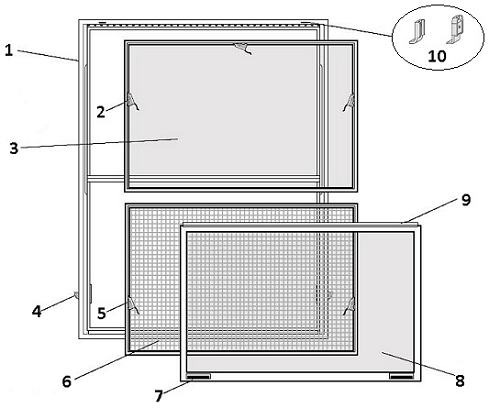

Andersen® double-hung combination units have many different parts. To determine the terminology for a specific part, use the picture and table below.
1. Frame
2. Upper Panel Latches
3. Upper Panel
4. Frame Latches
5. Insect Screen Latches
6. Insect Screen
7. Spring Bolt Assembly (latch parts)
8. Lower Panel
9. Lower Panel Meeting Baffle
10. Hangers (hinge)
Contact Andersen® Windows and Doors today for assistance with a quote for replacement parts.
