To print this worksheet, please open the attached PDF document Identify My E-Series Hinged Patio Door Worksheet.
The Identify My E-Series Hinged Patio Door Worksheet is designed to gather the necessary information to identify an E-Series product, accessories, and features. It is recommended that one follows the product identification process so that one may:
Purchase and receive the correct replacement part(s) for an E-Series product.
Locate the care and maintenance guide for an E-Series product.
Locate installation and/or service guides for an E-Series product.
For information on contacting us directly, see Contact Andersen® Windows and Doors.
If the images below do not match the patio door in question, please see:
Identify My Hinged Inswing Patio Door Worksheet
Identify My Hinged Outswing Patio Door Worksheet
|
Step 1: Locate Product Identification Label (2009 - Present)
|
|
If the product was manufactured before 2009, please skip to Step 2.
|
|
Identify Your Andersen® Window or Patio Door Using a Product ID Label. The Product Identification (ID) label was implemented on products beginning in 2009. All products manufactured 2009 - present will have a Product ID label, which provides information on the product, size, color and other important identification details.
If the product was manufactured after 2009, please locate the Product ID label, which is located on the bottom hinge of a 3-hinged door panel, and the second (2) hinge from the bottom of a 4-hinged door panel.
For assistance locating the Product ID label, please Contact Andersen® Windows and Doors.
|
|
Sample Product Identification Label
Once you have located the Product ID label on the unit, record the Product ID number on the line below.
Product ID Number: ________________________________
|
|
Step 2: Locate the E-Series Glass Logo
|
|
Locate the E-Series glass logo on the patio door. The glass logo is etched into the glass surface and is usually located in the bottom corner.
|
|
Pre-December 2012
|
December 2012 - Present
|
If the glass logo has been located, please record the information displayed around the glass logo in the space provided below. Please do not include tempering info which may include the word tempered and is not near the E-Series logo.
If the glass logo on the patio door isn't visible, please contact us for further assistance.
E-Series Glass Logo Info: _____________________________
|
|
Step 3: Daylight Opening Dimensions
|
|
From the interior of the home, please measure (in inches) the glass surface you can see and touch, also known as the daylight opening. For additional information, please see How to Measure Glass in Your Andersen® Window or Patio Door.
|
|
Record the width and height, including fractional dimensions, in the space provided below. (example: 67 ⅛" )
Width: __________inches Height: __________inches
|
|
Step 4: Overall Panel Dimensions
|
|
Please gather the width and height measurements of the overall panel, as outlined in orange in the below photo.
|
|
Record the width and height, including fractional dimensions, in the space provided below. (example: 67 ⅛" )
Width: __________inches Height: __________inches
|
|
Step 5: Bottom Rail Dimension
|
|
Please measure the bottom rail of the hinged patio door.
|
|
|
| |

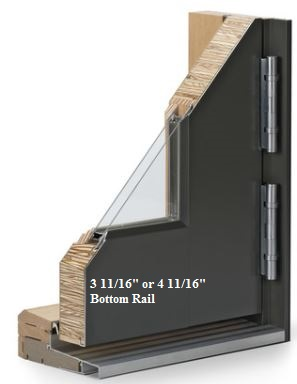

Traditional Panel
|

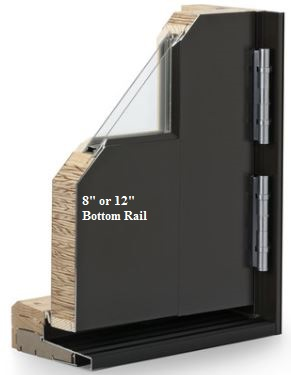

Contemporary Panel
|
For additional panel options please visit the E-Series Hinged Patio Door page  on the Andersen website and choose Additional Panel Options.
|
|
Step 6: Glass Stop Profile
|
|
To determine which glass stop profile is present on the window, please see Stop Profile History for Eagle® / E-Series
|
|
For an Inswing patio door choose one of the glass stop profile options on the right.
|
|
|
|
Step 7: Sill Type
|
|
Please take a look at the images below and choose a sill type.
|
|
For an Inswing patio door choose one of the options on the right.
|
| |

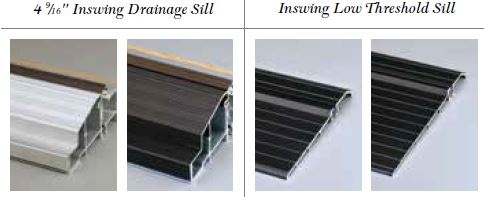

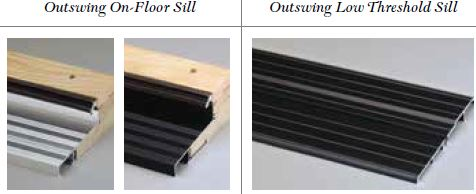

For an Outswing patio door choose one of the sill options on the right.
|
|
There are additional sill options, not seen here, on vintage hinged patio doors made before 2005.
|
|
Step 8: Determine Patio Door Handing
|
|
Patio doors are handed from the exterior of the home.
|
|
Active Panel: left-handed
|
Passive Panel: left-handed
|
Active Panel: right-handed
|
Passive Panel: right-handed
|
|
Opens in to the left
|
Opens in to the right
|
|
| |
|
| |
|
|
| |
Active Left-Hinged
|
Active Right-Hinged
|
Stationary
| |
| |
|
|
| |
Active Left-Hinged
Passive Right-Hinged
|
Passive Left-Hinged
Active Right-Hinged
|
Other
|
|
|
Step 9: Determine Interior and Exterior Color
|
|
Use the identification information below to determine the exterior color and interior finish of the patio door.
|
|
Exterior Colors
|
|
|
|
|
|
| |
Colony
White
|
White
|
Abalone
|
Balsa
White
|
Canvas
|
Maple
Syrup
| |
|
|
|
|
|
| |
Harvest Gold
|
Prairie
Grass
|
Flagstone
|
Sandtone
|
Pebble
Tan
|
Carmel
| |
|
|
|
|
|
| |
Terratone
|
Hot
Chocolate
|
Bourbon
|
Acorn
|
Coffee Bean
|
Cocoa Bean
| |
|
|
|
|
|
| |
Sierra
Bronze
|
Dark
Bronze
|
Clay
Canyon
|
Red
Rock
|
Cardinal
|
Bing
Cherry
| |
|
|
|
|
|
| |
Fire
Engine
Red
|
Cinnamon
Toast
|
Olive
|
Sage
|
Billiard
Green
|
Moss
| |
|
|
|
|
|
| |
Forest
Green
|
Mallard
Green
|
Spearmint
|
Aquamarine
|
Patina
|
Sky
Blue
| |
|
|
|
|
|
| |
Country
Blue
|
Blue
Denim
|
Watercolor
Blue
|
Caribbean
Blue
|
Slate
|
Moody
Blue
| |
|
|
|
|
|
| |
Stormy
Blue
|
Dove
Gray
|
Harbor
Mist
|
Yorktown
Pewter
|
Smokey
Gray
|
Mystic
Gray
| |
|
|
| |
Dark
Ash
|
Black
|
Custom
| |
| | Exterior Colors Removed from the Standard 50 Colors (As of 2013): | |
|
|
|
|
|
| |
Blue Mist
|
Antique
White
|
Black
(Eagle)
|
Butterscotch
|
Cappuccino
|
Chocolate
Chip
| |
|
|
|
|
| | |
Elephant
|
Forest Green
(Eagle)
|
Gray
Flannel
|
Linen
|
Pink
Chablis
| | |
space
|
Anodized Finishes
|
|
|
| |
Clear
|
Champagne
|
Light Bronze
| |
|
|
| |
Medium Bronze
|
Copper
|
Dark Bronze
| |
|
|
| |
|
Black
| |
Interior Wood Species
|
|
|
|
|
| |
Pine
|
Mixed Grain
Douglas Fir
|
Oak
|
Maple
|
Walnut
| |
|
|
|
|
| |
Hickory
|
Mahogany
|
Cherry
|
Vertical Grain
Douglas Fir
|
Alder
|
Interior Wood Species
|
|
|
|
| |
Wheat
|
Autumn Oak
|
Golden Hickory
|
Honey
| |
|
|
|
| |
Cinnamon
|
Russet
|
Mocha
|
Espresso
|
Painted Options
|
|
Step 10: Hardware Color
|
|
Using the images below, select which color of hardware closest resembles what is present on the door.
|
|
|
|
|
|
| |
White
|
Black
|
Stainless Steel
|
Limited Lifetime Brass
|
Polished Brass
| |
|
|
|
|
| |
Antique Brass
|
Pewter
|
Oil Rubbed Bronze
|
Satin Chrome
|
Bright Chrome
| |
| |
E-Series / Eagle® hinged patio doors manufactured after March 9, 2018, will have A-Series trim sets. If the handle on the door doesn't match the designs above, or if the door was manufactured after March 9, 2018, please see Hinged Patio Door Hardware Styles and Finish Options.
|
|
|
|
Step 11: Identify Escutcheon Plate
|
|
Using the images below, select which escutcheon plate is present on the door.
|
|
|
| |
Contoured
|
Square
|
|
|
Step 12: Hardware Style
|
|
Using the images below, select which style of hardware closest resembles what is present on the door.
|
|
|
|
|
| |
Capri
|
Athens
|
Bellagio
|
Luxor
| |
|
|
|
| |
Normandy
|
Piedmont
|
Riviera
|
Tuscany
|
|
|
Step 13: Grille Style, Pattern and Width
|
|
If the patio door has grilles, determine the grille style, pattern and width by viewing the photos below.
|
|
Modern Divided Light:
| |
Colonial
|
Contemporary
| |
|
| |
Available Profiles:
|
|
Classic Divided Light:
| |
Colonial
|
Contemporary
| |
|
| |
Available Profiles:
|
|
Removable Wood:
| |
Colonial
|
Contemporary
| |
|
| |
Available Profiles:
|
|
Between-Glass (Muntin):
| |
| |
Available Profiles:
|
| Grille Patterns: | |
|
|
|
|
|
| |
Traditional
|
Craftsman
|
Prairie
|
Ladder
|
Diamond
|
Custom
|
|
