To print this worksheet, please open the attached PDF document Identify My Gliding Patio Door Worksheet.
The "Identify My Gliding Patio Door Worksheet" is designed to walk you through gathering the necessary information to identify your Andersen® product, accessories and features. We recommend that you follow the product identification process so that you may:
Purchase and receive the correct replacement part(s) for your Andersen® product.
Locate the care and maintenance guide for your Andersen® product.
Locate installation and/or replacement guides for your Andersen® product.
For information on contacting us directly, see Contact Andersen® Windows and Doors.
| Locate Product Identification Label (2007 - Present) |
|
If your product was manufactured before 2007, please skip to the next section.
|
|
The Product Identification (ID) Label was implemented on products beginning in 2007. All products manufactured 2007 - Present will have a Product ID label, which provides information on the product, size, color and other important identification details. See Identify Your Andersen® Window or Patio Door Using a Product ID Label.
If your product was manufactured after 2007, please locate the Product ID label. For assistance locating the Product ID label, see the Product Label Identification Guide (9051877)  and list review..
A-Series and 400 Series Frenchwood® Gliding Patio Doors: On Frenchwood® gliding patio door units, the Product ID label can be found on the top of the frame above the operating panel and along the top edge of the patio door panel that faces the patio door frame. To access the Panel Product ID label, the patio door panel must be removed. In most cases, you only need to record the Frame Product ID.
|
|
| |
Frame Product Id Label
|
Panel Product Id Label
|
|
|
Sample Product Identification Label
Once you have located the Product ID label on your gliding patio door, record the Product ID number on the line below.
Product ID Number: ________________________________
|
| Locate the Andersen® Glass Logo |
|
Locate the Andersen® glass logo on your patio door panel. The glass logo is etched into the glass surface and is usually located in the bottom corner.
See Glass Type Identification for Andersen® Windows and Patio Doors to view additional glass logo examples.
|
|
If you have located the glass logo, please record the information displayed around the glass logo in the space provided below. Please do not include tempering info which may include the word, "tempered," and is not near the Andersen Windows triangle logo.
If you are unable to locate the glass logo on your patio door panel, please contact us for further assistance.
Andersen® Glass Logo Info: _____________________________
|
| Visible Interior Glass Dimensions |
| From the interior of the home, please measure (in inches) the glass surface you can see and touch, also known as the "unobstructed glass dimension". For additional information, please see How to Measure Glass in Your Andersen® Window or Patio Door. |
|
Record the width and height, including fractional dimensions, in the space provided below. (example: 67 ⅛" )
Width: __________inches Height: __________inches
|
| Gliding Patio Door Handing |
| Patio doors are handed from the exterior of the home. |
|
 Opens to the Right
|
 Opens to the Left
|
|
|
|
|
|
| |
Stationary
|
→ Left Operating
Stationary
|
Stationary
← Right Operating
|
Stationary
→ Left Operating
Stationary
| | | |
|
| |
→ Left Operating
Stationary
← Right Operating
|
Stationary
← Left Operating
→ Right Operating
Stationary
|
|

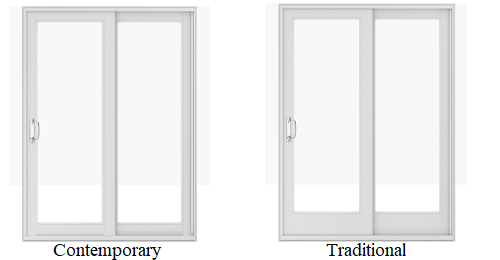

| Determine Gliding Patio Door Series |
Use the identification information below to determine your gliding patio door Series.
|
|
|
A-Series Frenchwood® Gliding Patio Door
| |
Multi-Point Lock
|
Interior Bottom Rail Height
| |
|
|
|
Exterior Colors
| |
|
|
|
|
| |
White
|
Sandtone
|
Canvas
|
Terratone
|
Forest Green
| | | |
|
|
|
|
| |
Prairie Grass
|
Dove Gray
|
Dark Bronze
|
Cocoa Bean
|
Red Rock
| | | |
|
|
|
|
| |
Black
|
|
|
|
|
|
|
Painted Interiors
| |
|
|
|
|
| |
White
|
Birch Bark
|
Primed
|
Sandtone
|
Canvas
| | | |
|
|
|
|
| |
Dark Bronze
|
Black
|
| | |
|
Interior Wood Species
| |
|
|
|
|
| |
Pine
|
Maple
|
Oak
|
Cherry*
|
Mahogany*
| | | |
|
|
|
|
| |
Vertical Grain Douglas Fir*
|
|
| | |
|
Interior Stain Options
| |
|
|
|
|
| |
Clear Coat
|
Honey
|
Cinnamon
|
Russet
|
Mocha
| | | |
|
|
|
|
| |
Espresso
|
|
| | | |
*Only available unfinished
Additional interior painted interior colors are available as a special order. Contact an Andersen dealer for more details.
Product ID will provide factory-applied stain finish and interior wood details.
|
|
400 Series Frenchwood® Gliding Patio Door
|
|
Reachout Lock
|
Interior Bottom Rail Height
| |
|
|
|
|
|
|
|
|
| |
White
|
Sandtone
|
Terratone
|
Forest Green
|
|
|
Interior Finishes
| |
|
|
|
|
| |
White
|
Pine
|
Maple
|
Oak
|
|
|
200 Series Narroline® Gliding Patio Door
| |
Reachout Lock
|
Interior Bottom Rail Height
| |
|
|
|
Exterior Colors
| |
|
|
|
|
| |
White
|
Sandtone
|
Terratone
|
Canvas
|
Dark Bronze
| | | |
|
|
|
|
| |
Black
|
|
|
|
|
|
Interior Finishes
| |
|
|
|
|
| |
White
|
Pine
|
Maple
|
Oak
|
Dark Bronze
|
| | |
|
|
|
|
| |
Black
|
|
|
| |
|
|
200 Series Perma-Shield® Gliding Patio Door
| |
Reachout Lock
|
Interior Bottom Rail Height
| |
|
|
|
Interior and Exterior Colors
| |
|
|
|
|
| |
White
|
Sandtone
|
Terratone
|
Canvas
|
Dark Bronze
| | | |
|
|
|
|
| |
Black
|
|
|
|
| |
The color of the exterior and interior rigid vinyl (PVC) surfaces are the same.
|
|
100 Series Gliding Patio Door
| |
2-Point Lock
|
Interior Bottom Rail Height
| |
|
|
|
Exterior Colors
| |
|
|
|
|
| |
Black
|
Dark Bronze
|
Cocoa Bean**
|
Terratone
|
Sandtone
| |
|
|
|
|
| |
White
|
|
|
|
|
|
|
Interior Finishes
| |
|
|
|
|
| |
Black*
|
Dark Bronze*
|
Sandtone**
|
White
|
| |
*Black and Dark Bronze interiors are available only with Black and Dark Bronze exteriors respectively.
**Cocoa Bean is no longer available as an exterior color and Sandtone as an interior color is only available with a Sandtone exterior, as of 11/29/2018.
| | |
|
| Step 6: Gliding Patio Door Hardware |
| Select an image below to determine the hardware style and finish. |
|
|
Please record your hardware style and finish:______________________________ |
| Step 7: Grille Location, Color, Pattern and Width |
If your gliding patio door has grilles, determine the grille location, color, pattern and width by selecting the image below.
|
|
|
